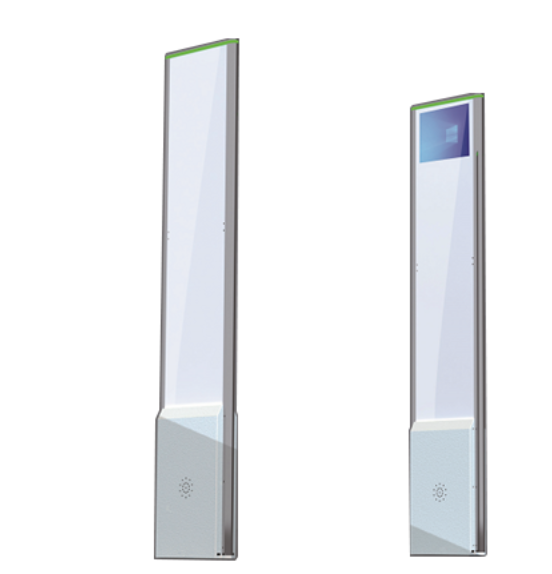

一、产品介绍/Product introduction：

1.1、FU-TD-13智能RFID门禁是一款对粘贴有符合EPC C1 G2（ISO18000-6C）协议的RFID标签的资产（图书、档案或其他高值资产）进行防盗管理的设备。

1.2、FU-TD-13智能RFID门禁主要由RFID读写器、RFID天线及结构件组成。产品造型轻薄时尚，天线部分厚度仅32mm。

1.3、FU-TD-13智能RFID门禁采用航空铝材、亚克力组成。可有效融合到图书馆，仓库，办公楼等环境系统中，常规款为离线工作模式。

1.4、产品采用了高增益的专用天线，在保证标签识别准确率的情况下，能有效控制误读范围。

1.5、产品可广泛适用于各类物流、仓储、图书、档案、人员考勤的管理。

1.1. FU-TD-13 intelligent RFID access control is a device for anti-theft management of assets (books, archives or other high-value assets) with RFID tags conforming to EPC C1 G2(ISO18000-6C) protocol.

1.2. FU-TD-13 intelligent RFID access control is mainly composed of RFID reader, RFID antenna and structural parts. The product is light and stylish, and the thickness of the antenna part is only 32 mm.

1.3. FU-TD-13 intelligent RFID access control is made of aviation aluminum and acrylic. Can be effectively integrated into environmental systems such as libraries, warehouses, office buildings, etc., and the conventional model is offline.

1.4. The product adopts a special antenna with high gain, which can effectively control the misreading range while ensuring the accuracy of tag identification.1.5, the product can be widely used in all kinds of logistics, warehousing, books, files, personnel attendance management.

二、产品功能/product function：

• 支持 EPC C1 G2（ISO18000-6C）协议；

  Support EPC C1 G2(ISO18000-6C) protocol;

• 输出功率最大支持 33dbm，功率大小可调（范围为 0 -33dBm）；

  The maximum output power is 33dbm, and the power size is adjustable (the range is 0-33 DBM);

• 可对档案及资产防盗检测，防止受限物品非法带出管控区域；

  Anti-theft detection can be carried out on files and assets to prevent restricted items from being illegally taken out of the control area;

• 带有声光报警功能，报警音量可调；

  With acousto-optic alarm function, the alarm volume can be adjusted;

• 射频系统部署有高增益天线，可有效检出电子标签并减少误报；

  The RF system is equipped with a high gain antenna, which can effectively detect electronic tags and reduce false positives.

• 可通过网络配置读写器；

  The reader can be configured through the network;

• 可选红外运动方向判断；

  Optional infrared motion direction judgment;

• 可选触摸屏；

  Optional touch screen;

• 外观时尚，组装简便

  Fashionable appearance and simple assembly.




三、产品参数/Product parameter

四、RFID通道门主副门禁组成部分

RFID access door main and auxiliary access control components：

1）主门禁包括门禁架1套、9dbi窄波束天线2根、4 port读写器1套、电源模块1套、RS232串口1个、以太网口1个、馈线2根；

2）副门禁包括门禁架1套、9dbi窄波束天线2根、红外对射1组、馈线2根、红外连接线1组；

1) The main entrance guard includes 1 set of entrance guard frame, 2 9dbi narrow beam antennas, 1 set of 4 port reader/writer, 1 set of power module, 1 RS232 serial port, 1 Ethernet port and 2 feeders;

2) The auxiliary access control includes 1 set of access control frame, 2 9dbi narrow beam antennas, 1 set of infrared beam, 2 feeders and 1 set of infrared connecting wires;

深圳市铨顺宏科技有限公司（https://www.fuwit.com.cn/）作为美国JADAK旗下ThingMagic的中国区总代理商，为您提供ThingMagic的超高频RFID模块、超高频RFID读写器以及超高频RFID天线和标签。ThingMagic作为全球的RFID设备制造商，可以在保证稳定性和准确性的前提下，其核心产品具备750张标签每秒的读取速度，强大的多标签防碰撞算法，高速的信息读取与处理能力。

深圳铨顺宏以专业的技术支持，用心服务于每位客户和用户，帮助客户将ThingMagic产品广泛应用于RFID服装零售智慧门店、RFID医疗智能化管理、RFID航空行李管理、RFID物流自动化分拣，RFID精准农渔业智能化等多个领域。

还想了解更多RFID产品详情？请点击右上角的在线客服(400 0581 580)咨询，深圳市铨顺宏将竭诚为您服务！

FU-TD-13智能RFID门禁产品参数：
